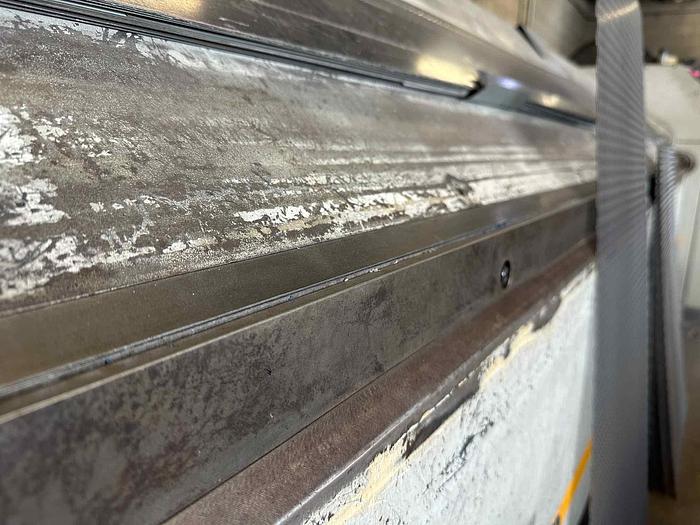

16 Gauge x 10′ RAS Turbobend CNC Folding Machine, 2002
Sold
16 Gauge x 10′ RAS Turbobend CNC Folding Machine, 2002
Description
Machine Type:
Folding Machines
Make:
RAS
Model:
61.31
Year:
2002
Capacity:
‘
Machine Location:
Utah
Stock #:
480801
RAS CNC SYSTEM 5000 for Backgauge, Folding Beam, Upper Beam, and Virtual CNC Axis for the Folding Beam Adjustment, All Welded Steel Construction, Electric Foot Pedal
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Specifications
| Condition | Used |
| Working width | 124″ |
| Maximum sheet thickness | 16 Ga |
| Minimum inner bend radius | 1.5 x Thickness |
| Minimum flange height inside | 6 x Thickness |
| Maximum upstroke | 4.72″ |
| Maximum flooding beam adjustment | .19″ |
| Backgauge depth | .31″-39.4″ |
| Working height | 33″ |
| Downstroke speed | 2.5″/ Second |
| Maximum folding beam speed | 80 Degrees/ Second |
| Backgauge speed (.31″ – 30.4″) | 1.9 Seconds |
| Electrical | 220/3/60 |
