(1) - ONLY “USED” LOCKFORMER MODEL 16 10FT X 16 GAUGE HYDRAULIC DUCT NOTCHER

SPECIFICATIONS:

CAPACITY                                 16-28 Gauge Mild Steel 10 Feet

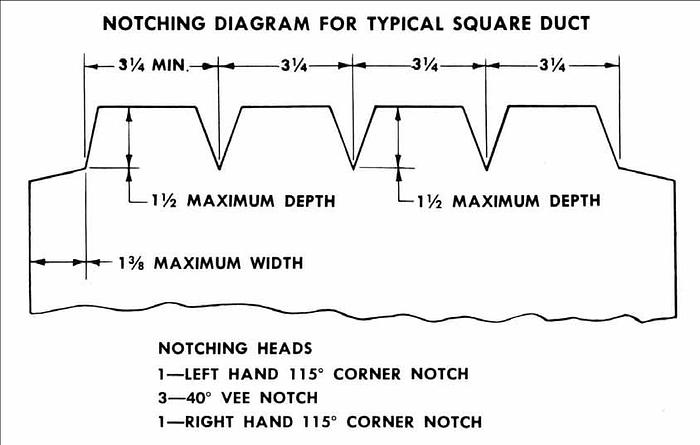

 DEPTH OF POCKET / SIZE        1-1/2” Max. for “V” Notch

                                                  1-1/2” Max. for “Corner” Notch

MOTOR                                     3 H.P., 115/230 Volts, 60 Hz., 1 Ph, 1,800 RPM

DRIVE                                        Hydraulic

STAND                                        Formed Steel.

DIMENSIONS                             122” Long

                                                  24” Wide

                                                  Pass Line 45”

SHIPPING WEIGHT                    Approx. 880 lbs.

CONSTRUCTION                                           Solid cast-iron heads hardened tool steel punches and dies.

Complete With:

3 S+D Notching Heads

3 TDC Notching Heads
